[Fuzzing101] - Exercise 1

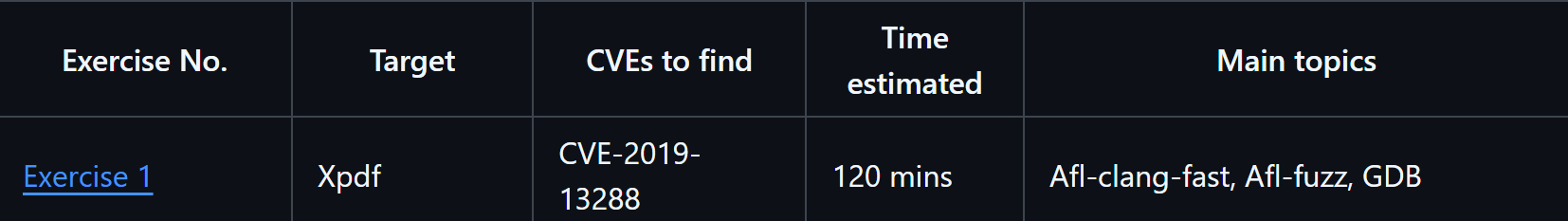

Fuzzing101에서 Exercise1을 할 것이다.



Xpdf가 타겟이라 되어있다.

• All the exercises have been tested on Ubuntu 20.04.2 LTS. You can download it from here

Thank you for downloading Ubuntu Desktop | Ubuntu

이렇게 Ubuntu 20.04.2 LTS를 다운하라고 한다.



다운하고 패키지를 다운한다.

sudo apt update -y && sudo apt upgrade -y
sudo apt install build-essential gcc -y
sudo apt-get install python3-pip





다음으로 xpdf를 설치한다.

wget https://dl.xpdfreader.com/old/xpdf-3.02.tar.gz
tar -xvzf xpdf-3.02.tar.gz
./configure --prefix="$HOME/fuzzing_xpdf/install/"
make
make install

sample pdf를 설치한다.

cd $HOME/fuzzing_xpdf
mkdir pdf_examples && cd pdf_examples
wget https://github.com/mozilla/pdf.js-sample-files/raw/master/helloworld.pdf
wget http://www.africau.edu/images/default/sample.pdf
wget https://www.melbpc.org.au/wp-content/uploads/2017/10/small-example-pdf-file.pdf

실행해보면

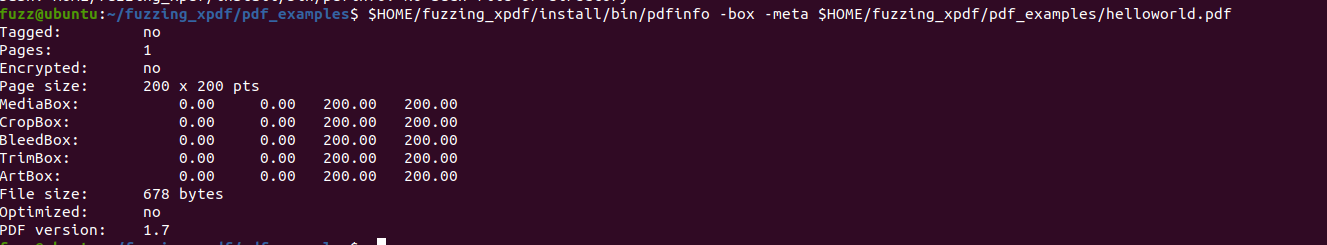

$HOME/fuzzing_xpdf/install/bin/pdfinfo -box -meta $HOME/fuzzing_xpdf/pdf_examples/helloworld.pdf

다음과 같이 나온다.



그 다음 AFL++을 설치한다.

AFL++을 설치하기 전 필요한 종속을 먼저 설치한다.

sudo apt-get update
sudo apt-get install -y build-essential python3-dev automake git flex bison libglib2.0-dev libpixman-1-dev python3-setuptools
sudo apt-get install -y lld-11 llvm-11 llvm-11-dev clang-11 || sudo apt-get install -y lld llvm llvm-dev clang
sudo apt-get install -y gcc-$(gcc --version|head -n1|sed 's/.* //'|sed 's/\..*//')-plugin-dev libstdc++-$(gcc --version|head -n1|sed 's/.* //'|sed 's/\..*//')-dev

AFL++ 을 설치한다.

cd $HOME
git clone https://github.com/AFLplusplus/AFLplusplus && cd AFLplusplus
export LLVM_CONFIG="llvm-config-11"
make distrib
sudo make install

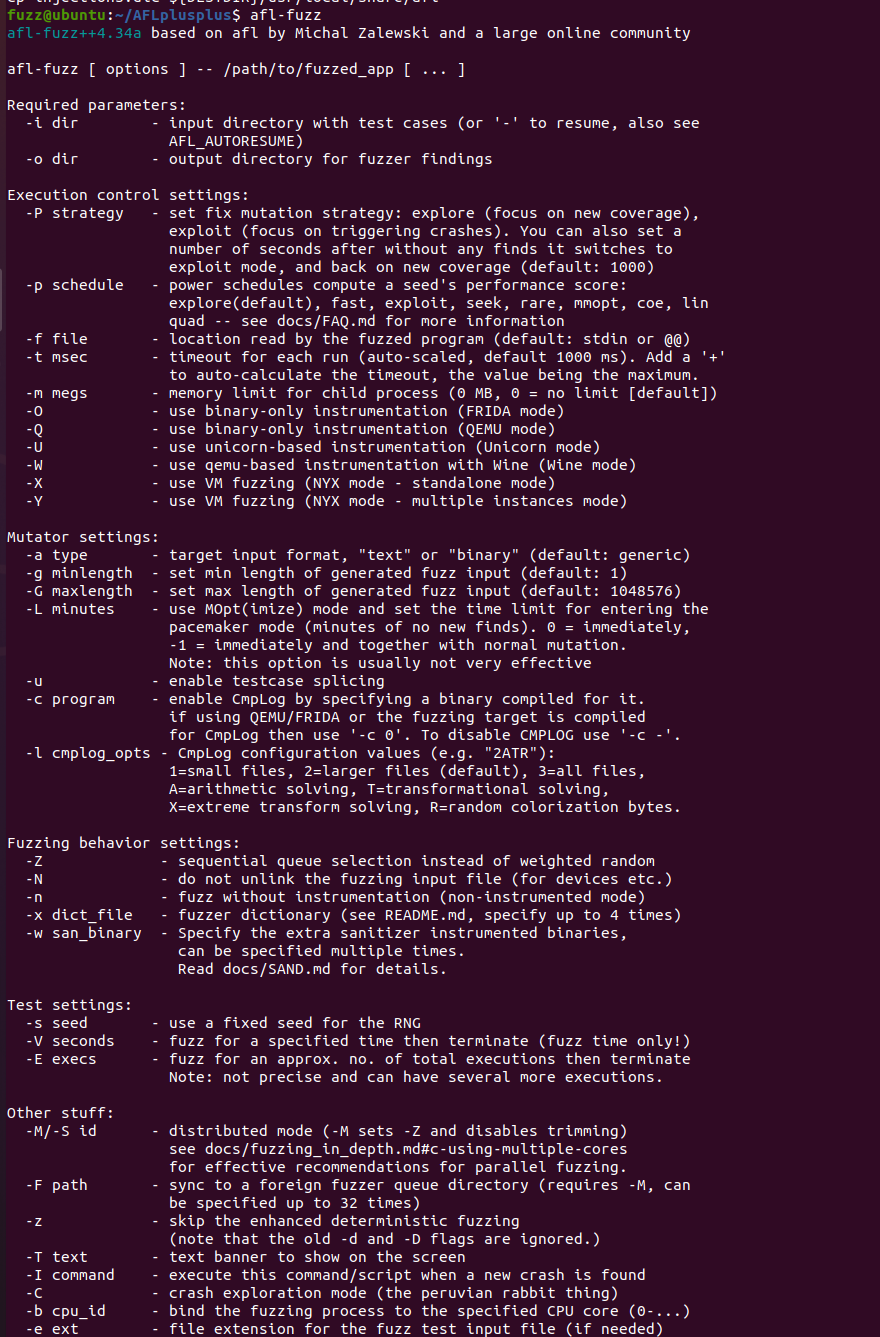

설치 한 후 alf-fuzz를 입력하면 다음과 같이 나온다.



이전의 컴파일된 개체 파일을 정리한다.

cd xpdf-3.02
make clean





다음을 입력하여 xpdf를 빌드한다.

export LLVM_CONFIG="llvm-config-11"
CC=$HOME/AFLplusplus/afl-clang-fast CXX=$HOME/AFLplusplus/afl-clang-fast++ ./configure --prefix="$HOME/fuzzing_xpdf/install/"
make
make install





이 다음에 퍼저를 실행했는데 오류가 났다...

그래서 AFL 계측 빌드에 문제가 있는 것 같아서 셋팅해보니

cd ~/fuzzing_xpdf/xpdf-3.02
make distclean || true   # 이전 빌드 잔여물 제거

export PATH="/usr/local/bin:$PATH"
export CC=afl-cc
export CXX=afl-c++
export CFLAGS='-O2 -g'
export CXXFLAGS='-O2 -g'

./configure --prefix="$HOME/fuzzing_xpdf/install" --disable-shared
make -j"$(nproc)"
make install

이 후 계측 확인을 한다.

afl-showmap -o /tmp/map -- \
  ~/fuzzing_xpdf/install/bin/pdftotext \
  ~/fuzzing_xpdf/seeds/helloworld.pdf /dev/null
wc -c /tmp/map   # 0보다 크면 OK (커버리지 맵 생성 확인)

afl-fuzz \
  -i ~/fuzzing_xpdf/seeds \
  -o ~/fuzzing_xpdf/out \
  -s 123 -- \
  ~/fuzzing_xpdf/install/bin/pdftotext @@ ~/fuzzing_xpdf/output

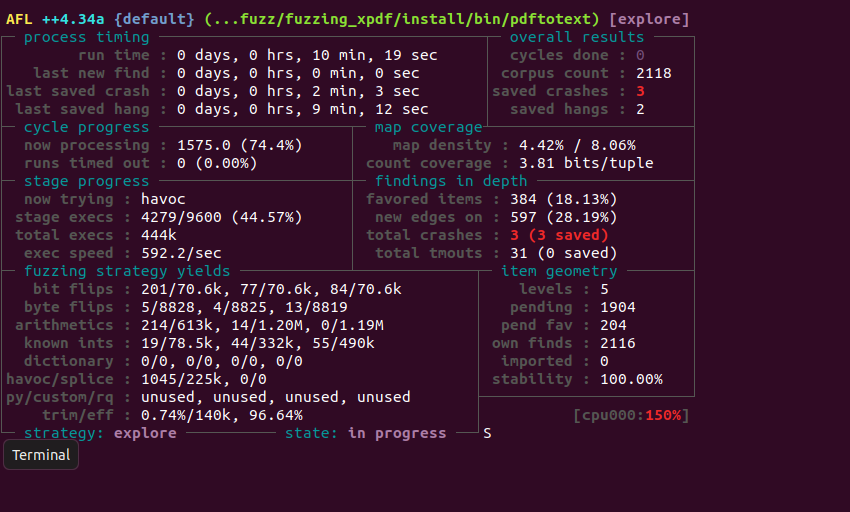

퍼징을 실행한다.

10분 정도 돌렸더니 3개의 크래시가 나왔다.

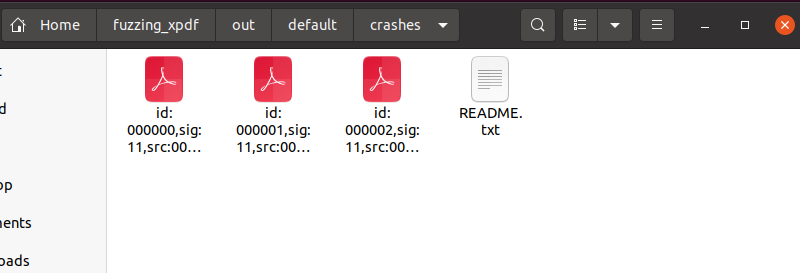

이렇게 3개의 pdf가 있다.

이걸

setarch $(uname -m) -R gdb --args \
>   "$HOME/fuzzing_xpdf/install/bin/pdftotext" \
>   "$HOME/fuzzing_xpdf/out/default/crashes/id:000000,sig:11,src:000001,time:186147,execs:120878,op:havoc,rep:6" \
>   /dev/null

하여 실행해보면

gdb가 실행되고 실행한다음 run을 하고

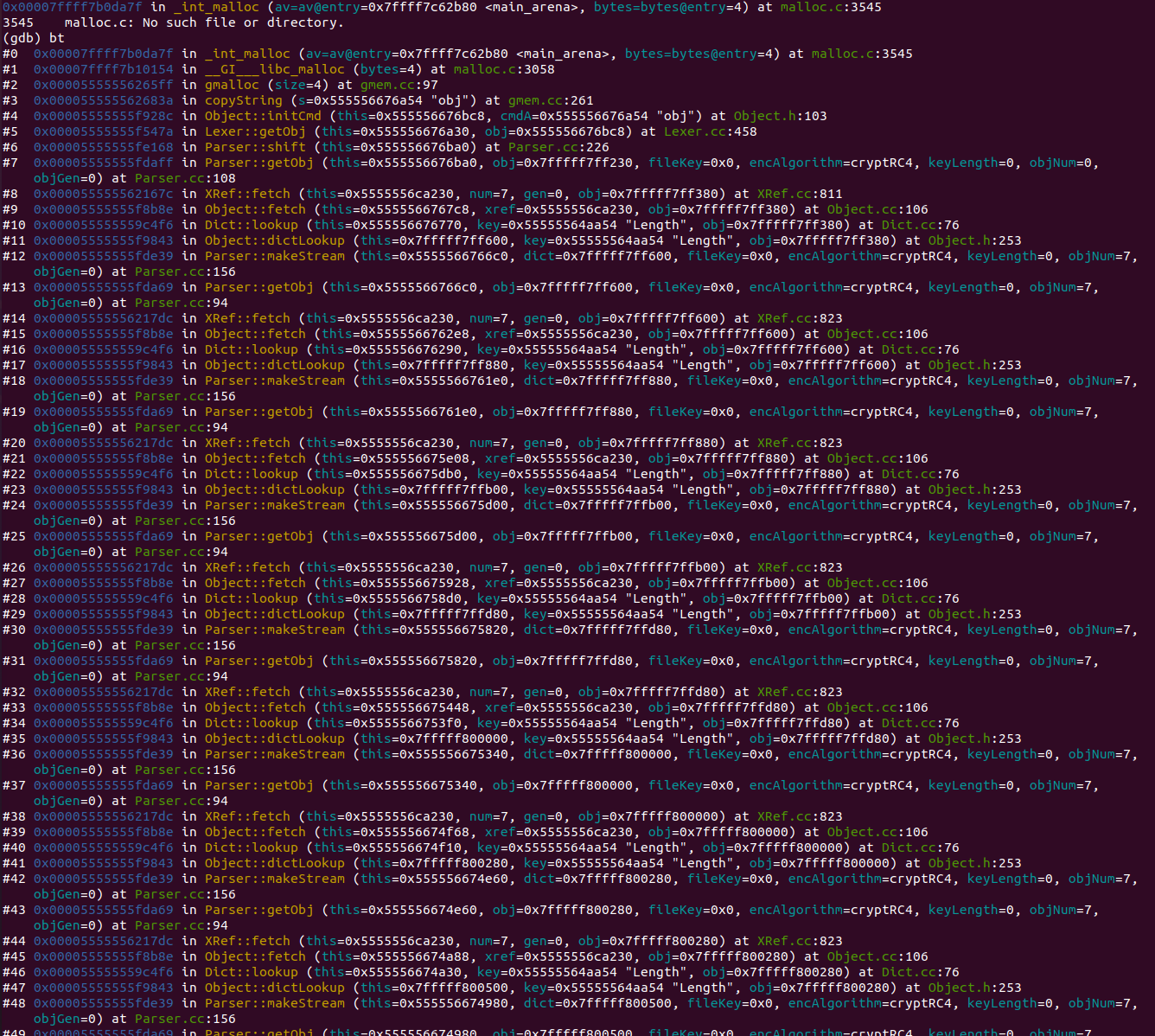

멈추면 bt를 입력하면

다음과 같이 나온다.

이걸 보면

getObj가 많이 나오는데 이는 무한 재귀를 나타낸다.

#254 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff805a00) at XRef.cc:823
#255 0x00005555555f8b8e in Object::fetch (this=0x555556669fe8, xref=0x5555556ca230, obj=0x7fffff805a00) at Object.cc:106
#256 0x000055555559c4f6 in Dict::lookup (this=0x555556669f90, key=0x55555564aa54 "Length", obj=0x7fffff805a00) at Dict.cc:76
#257 0x00005555555f9843 in Object::dictLookup (this=0x7fffff805c80, key=0x55555564aa54 "Length", obj=0x7fffff805a00) at Object.h:253
#258 0x00005555555fde39 in Parser::makeStream (this=0x555556669ee0, dict=0x7fffff805c80, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#259 0x00005555555fda69 in Parser::getObj (this=0x555556669ee0, obj=0x7fffff805c80, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#260 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff805c80) at XRef.cc:823
#261 0x00005555555f8b8e in Object::fetch (this=0x555556669b08, xref=0x5555556ca230, obj=0x7fffff805c80) at Object.cc:106
#262 0x000055555559c4f6 in Dict::lookup (this=0x555556669ab0, key=0x55555564aa54 "Length", obj=0x7fffff805c80) at Dict.cc:76
#263 0x00005555555f9843 in Object::dictLookup (this=0x7fffff805f00, key=0x55555564aa54 "Length", obj=0x7fffff805c80) at Object.h:253
#264 0x00005555555fde39 in Parser::makeStream (this=0x555556669a00, dict=0x7fffff805f00, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#265 0x00005555555fda69 in Parser::getObj (this=0x555556669a00, obj=0x7fffff805f00, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#266 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff805f00) at XRef.cc:823
#267 0x00005555555f8b8e in Object::fetch (this=0x555556669628, xref=0x5555556ca230, obj=0x7fffff805f00) at Object.cc:106
#268 0x000055555559c4f6 in Dict::lookup (this=0x5555566695d0, key=0x55555564aa54 "Length", obj=0x7fffff805f00) at Dict.cc:76
#269 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806180, key=0x55555564aa54 "Length", obj=0x7fffff805f00) at Object.h:253
#270 0x00005555555fde39 in Parser::makeStream (this=0x555556669520, dict=0x7fffff806180, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#271 0x00005555555fda69 in Parser::getObj (this=0x555556669520, obj=0x7fffff806180, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#272 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806180) at XRef.cc:823
#273 0x00005555555f8b8e in Object::fetch (this=0x555556669148, xref=0x5555556ca230, obj=0x7fffff806180) at Object.cc:106
#274 0x000055555559c4f6 in Dict::lookup (this=0x5555566690f0, key=0x55555564aa54 "Length", obj=0x7fffff806180) at Dict.cc:76
#275 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806400, key=0x55555564aa54 "Length", obj=0x7fffff806180) at Object.h:253
#276 0x00005555555fde39 in Parser::makeStream (this=0x555556669040, dict=0x7fffff806400, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#277 0x00005555555fda69 in Parser::getObj (this=0x555556669040, obj=0x7fffff806400, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#278 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806400) at XRef.cc:823
#279 0x00005555555f8b8e in Object::fetch (this=0x555556668c68, xref=0x5555556ca230, obj=0x7fffff806400) at Object.cc:106
#280 0x000055555559c4f6 in Dict::lookup (this=0x555556668c10, key=0x55555564aa54 "Length", obj=0x7fffff806400) at Dict.cc:76
#281 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806680, key=0x55555564aa54 "Length", obj=0x7fffff806400) at Object.h:253
#282 0x00005555555fde39 in Parser::makeStream (this=0x555556668b60, dict=0x7fffff806680, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#283 0x00005555555fda69 in Parser::getObj (this=0x555556668b60, obj=0x7fffff806680, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#284 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806680) at XRef.cc:823
#285 0x00005555555f8b8e in Object::fetch (this=0x555556668788, xref=0x5555556ca230, obj=0x7fffff806680) at Object.cc:106
#286 0x000055555559c4f6 in Dict::lookup (this=0x555556668730, key=0x55555564aa54 "Length", obj=0x7fffff806680) at Dict.cc:76
#287 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806900, key=0x55555564aa54 "Length", obj=0x7fffff806680) at Object.h:253
#288 0x00005555555fde39 in Parser::makeStream (this=0x555556668680, dict=0x7fffff806900, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#289 0x00005555555fda69 in Parser::getObj (this=0x555556668680, obj=0x7fffff806900, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#290 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806900) at XRef.cc:823
#291 0x00005555555f8b8e in Object::fetch (this=0x5555566682a8, xref=0x5555556ca230, obj=0x7fffff806900) at Object.cc:106
#292 0x000055555559c4f6 in Dict::lookup (this=0x555556668250, key=0x55555564aa54 "Length", obj=0x7fffff806900) at Dict.cc:76
#293 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806b80, key=0x55555564aa54 "Length", obj=0x7fffff806900) at Object.h:253
#294 0x00005555555fde39 in Parser::makeStream (this=0x5555566681a0, dict=0x7fffff806b80, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#295 0x00005555555fda69 in Parser::getObj (this=0x5555566681a0, obj=0x7fffff806b80, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#296 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806b80) at XRef.cc:823
#297 0x00005555555f8b8e in Object::fetch (this=0x555556667dc8, xref=0x5555556ca230, obj=0x7fffff806b80) at Object.cc:106
#298 0x000055555559c4f6 in Dict::lookup (this=0x555556667d70, key=0x55555564aa54 "Length", obj=0x7fffff806b80) at Dict.cc:76
#299 0x00005555555f9843 in Object::dictLookup (this=0x7fffff806e00, key=0x55555564aa54 "Length", obj=0x7fffff806b80) at Object.h:253
#300 0x00005555555fde39 in Parser::makeStream (this=0x555556667cc0, dict=0x7fffff806e00, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#301 0x00005555555fda69 in Parser::getObj (this=0x555556667cc0, obj=0x7fffff806e00, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#302 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff806e00) at XRef.cc:823
#303 0x00005555555f8b8e in Object::fetch (this=0x5555566678e8, xref=0x5555556ca230, obj=0x7fffff806e00) at Object.cc:106
#304 0x000055555559c4f6 in Dict::lookup (this=0x555556667890, key=0x55555564aa54 "Length", obj=0x7fffff806e00) at Dict.cc:76
#305 0x00005555555f9843 in Object::dictLookup (this=0x7fffff807080, key=0x55555564aa54 "Length", obj=0x7fffff806e00) at Object.h:253
#306 0x00005555555fde39 in Parser::makeStream (this=0x5555566677e0, dict=0x7fffff807080, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156
#307 0x00005555555fda69 in Parser::getObj (this=0x5555566677e0, obj=0x7fffff807080, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:94
#308 0x00005555556217dc in XRef::fetch (this=0x5555556ca230, num=7, gen=0, obj=0x7fffff807080) at XRef.cc:823
#309 0x00005555555f8b8e in Object::fetch (this=0x555556667408, xref=0x5555556ca230, obj=0x7fffff807080) at Object.cc:106
#310 0x000055555559c4f6 in Dict::lookup (this=0x5555566673b0, key=0x55555564aa54 "Length", obj=0x7fffff807080) at Dict.cc:76
#311 0x00005555555f9843 in Object::dictLookup (this=0x7fffff807300, key=0x55555564aa54 "Length", obj=0x7fffff807080) at Object.h:253
#312 0x00005555555fde39 in Parser::makeStream (this=0x555556667300, dict=0x7fffff807300, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7,
    objGen=0) at Parser.cc:156

이걸 보면 특정 부분이 계속 반복되는걸 알 수 있다.



이를 통해 무한 재귀로 인한 크래시가 발생하는 것을 알 수 있다.



Fuzzing101에서는 고치라 하는데 소스코드를 어디서 얻어야 하는지 모르겠어서 안할것이다.
